Hydraulic Cylinder Mount Welding for a Guide Rail Lift

In the manufacturing of a guide rail lift, every structural component plays an important role in the reliability of the complete system.

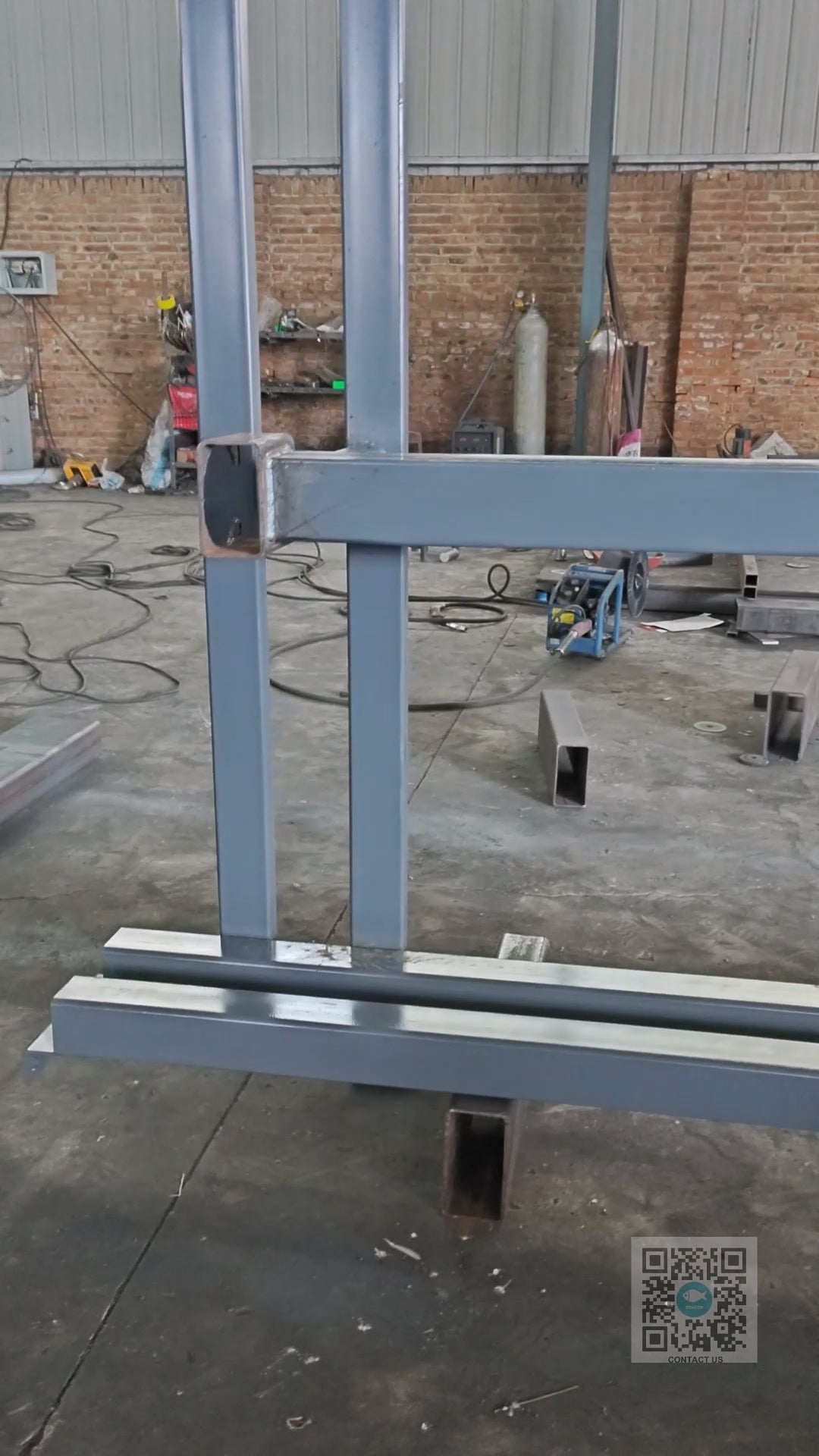

In this production process, our workers are welding the hydraulic cylinder mounting base directly onto the guide rail structure. The mounting base is designed to provide stable support and secure positioning for the hydraulic cylinder.

During lifting operation, the hydraulic cylinder generates the main lifting force. The cylinder mounting base provides a strong structural connection between the cylinder and the guide rail system, allowing the lifting force to be transferred safely and effectively through the main structure.

Although the cylinder mounting base is only one component of the complete guide rail lift, its fabrication and welding quality are important. Accurate positioning, proper welding and a solid connection help ensure the stability and durability of the finished equipment.

At Beacon Industries, we pay attention to every stage of manufacturing—from steel fabrication and welding to assembly and final testing—to provide reliable hydraulic lifting solutions for different applications.
