5-Ton Scissor Lift: A Closer Look at the Closed Structure

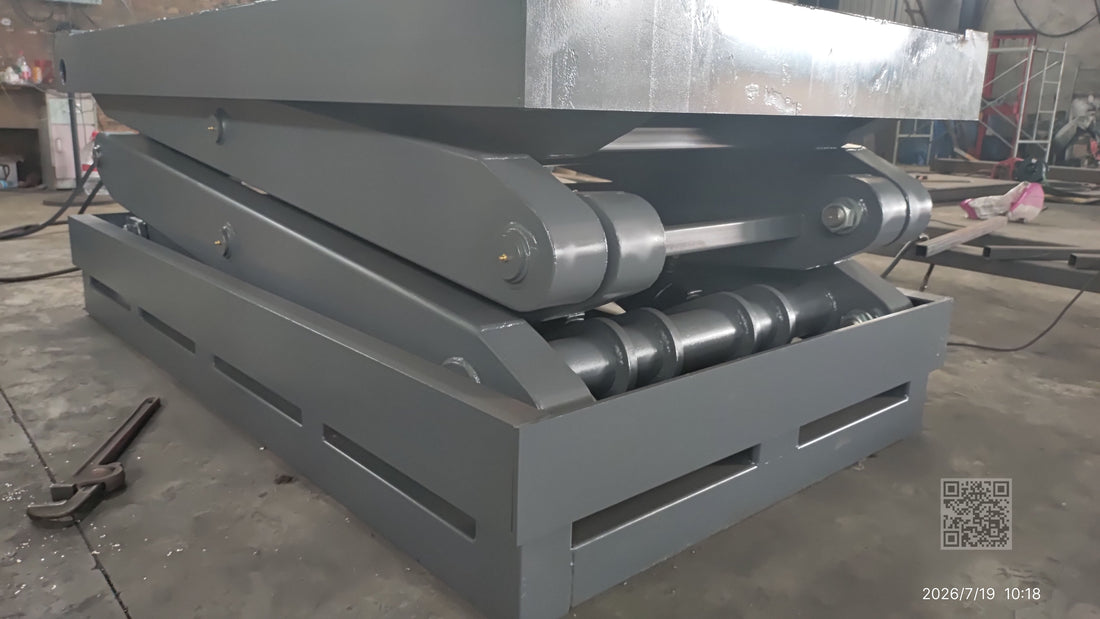

This 5-ton Scissor Lift is shown in its fully closed position, providing a clear view of its main structural components.

The scissor arms are made from 200 × 100 mm rectangular tubes, providing a strong structural foundation for the lifting mechanism. The pivot shafts use Ø121 mm seamless steel tubes, designed for the high loads and repeated movement of the scissor structure.

The hydraulic system uses two 125/90 mm hydraulic cylinders to provide the lifting force.

With a 5-ton load capacity, this Scissor Lift is designed for demanding industrial applications where structural strength, stability and reliable hydraulic lifting are important. If you are looking for a ready-to-order option, this 5-ton double scissor lift with 2915mm lift height is available for direct purchase.

The closed position also allows the key mechanical details to be clearly inspected before the lift is put into operation.
