5-Ton Scissor Lift with Heavy-Duty Structural Design

Here is a closer look at one of our 5-ton Scissor Lifts currently produced for heavy-duty lifting applications.

The platform measures 2.25 × 1.25 meters and is powered by two hydraulic cylinders, 125/90 mm. The main scissor arms are manufactured from 200 × 100 mm rectangular tubes, providing a substantial structural section for the 5-ton lifting requirement.

The design of a Scissor Lift is not only about selecting hydraulic cylinders. The platform dimensions, scissor-arm section, cylinder arrangement and overall structure need to work together as one lifting system. If you are interested in our standard 5-ton model with a 2,915 mm lift height and 5.5 kW power unit, you can view the full product specification on our 5-Ton Double Scissor Lift product page.

For another perspective on how we build our 5-ton units, see our related article: 5-Ton Scissor Lift: A Closer Look at the Closed Structure.

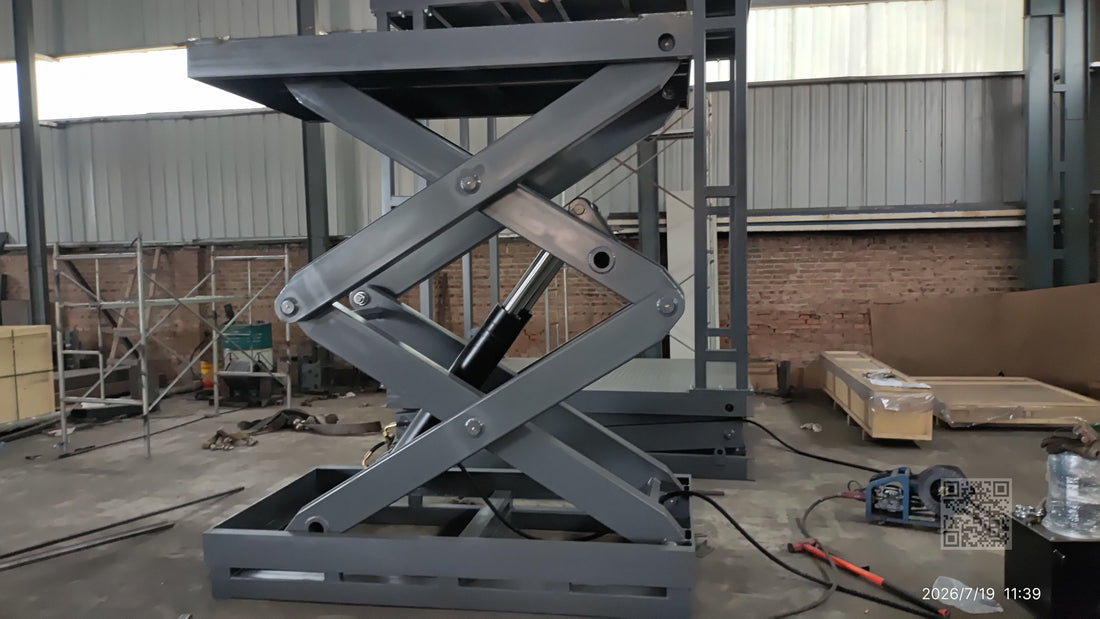

These photos show some of the construction details of this 5-ton hydraulic Scissor Lift, from the steel structure to the hydraulic components.
